IndyCar’s windscreen has been track tested for the first time at an oval in Phoenix.
Ganassi driver Scott Dixon conducted the test which will involve running the screen in a range of different light conditions.
The series is evaluating the screen which is designed to protect drivers from debris strikes, much as F1’s new Halo is also intended to do. The new device could be introduced during the upcoming season, which begins on March 11th at St Petersburg.
“It’s a very good start and no showstoppers, which is the biggest part,” Dixon told IndyCar’s official media partner after driving with the screen for the first time.
“What everyone was worried about is if we drive out and can’t see properly, glare was going to be an issue. We ran it at probably one of the worst times in Phoenix, too. Going into turn one it was complete sun and then going into the darkness.”
“For me it’s definitely a big change,” he said. “Having driven open-wheel cars the whole time with nothing in front of you, for me the biggest sensation to start with, outside of the visual, was how quiet it was. It felt like I was in a luxury car cruising around with no wind, your head wasn’t moving around.”
“I started hearing a lot of thing that you don’t [normally] hear. That was quite interesting. And then the heat, obviously there’s no airflow right now. It’s something that’s a very easy fix down the road with maybe a NACA duct or something in front.”
“But I think to start it’s pretty good. It is a little different to look through, you’ve got to imagine it’s quite a thick piece of material you’re transitioning and looking through. It’s more the sensation of having to get used to it, it’s like when you have a new pair of glasses or contacts or something like that, it visually takes you a little bit to get used to.”
Last year Formula One tested the Shield, a similar device to IndyCar’s windscreen, but Sebastian Vettel rejected the design, saying it made him feel “dizzy”.
IndyCar windscreen test pictures
IndyCar windscreen test video
Go ad-free for just £1 per month
>> Find out more and sign up
- Palou leads Ganassi charge with McLaren in pursuit – but many more could win
- McLaren reveals special ‘Triple Crown’-inspired livery for Monaco Grand Prix
- “Bittersweet moment” for Rahal as he replaces injured Wilson on Indy 500 grid
- Wilson ruled out of Indy 500 due to back injury sustained in crash with Legge
- Wilson taken to hospital but “doing well” after Monday practice accident
77 comments on “Video and pictures: IndyCar conducts first track test of its windscreen”
9th February 2018, 0:09
It looks fantastic, like an F1 car from the 70’s – 80’s; retro but on a modern and futuristic aero-kit
9th February 2018, 3:09
There will be a helmet cam on Dixon tomorrow. Should be really interesting video when uploaded. Live streaming of testing on the IndyCar mobile app and at IndyCar’s web site, the 9th & 10 / 3PM and 8PM Eastern Time. https://twitter.com/IndyCar/status/961700423517331456/photo/1
9th February 2018, 17:21
Visor cam now online http://www.racer.com/indycar/item/147305-racer-video-indycar-phoenix-windscreen-test-visor-cam
9th February 2018, 18:11
Wow, nice. Very little distortion! Interesting noticing the wheel is cocked right on the straights; must be set up to turn left.
9th February 2018, 23:28
14th February 2018, 4:56
I got “dizzy.” Jokes, I’m not a prima donna.
9th February 2018, 15:11
Actually, what it looks like is not 70s/80s Formula 1 cars, but 70s-early 90s IndyCars:
http://richzimmermann.com/images/racing/Emerson-Fittipaldi-1990-6.jpg – 1990
http://d2i8ejbvsgsqtt.cloudfront.net/gallery/indycar/indy/1980/19800101-nphotographer/med/imsc5093.jpg + 1980
In that era they looked after the drivers safety much more in IndyCar than they did in Formula 1. The drivers looked well protected, whereas F1 drivers had their shoulders sticking out of the cars.
9th February 2018, 17:22
good shout! They look epic! Hopefully in a few years F1 will adopt something similar
9th February 2018, 0:29
Not sure on details of the thing but if its similar to Halo it terms of safety then, wow. Makes the Halo look shocking. Lets wait and see i guess. Well done to Indycar
9th February 2018, 0:44
Looks great, but looks there is no structure to provide any real strength along the top of the screen. I can’t see it preventing a wheel hitting the driver which was the main test in the F1 scenario. It will surely flex. Also the vertical impact protection is virtually non existent. Aircraft screens are much thicker and thus much heavier but they still flex when hit. I know the Halo looks a bit odd, but is Indy rushing this in?
9th February 2018, 0:49
I don’t know how thick the previously tested Aeroscreens of Ferrari and Red Bull were but this is 1/2 inch of material in the Indycar version.
9th February 2018, 0:51
Here are a couple images showing how thick this screen is:
9th February 2018, 2:26
Wow! Transparent aluminum.
Indy must have gotten outside help.
10th February 2018, 4:27
Basically bulletproof glass. I don’t think they’ll have to worry about being hit by a wheel.
9th February 2018, 2:32
In the first image you linked, it’s interesting to note that there is no apparent distortion that I can make out.
The person in black, the umbrella holder and the air cylinder all seem the same above and through the aeroscreen. This is definitely good to know.
Mark Zastrow (@markzastrow)
9th February 2018, 6:33
I’m also impressed by the lack of glare and how transparent it is—the light coming through the screen is not noticeably dimmer, unlike the canopy of a sports car. That really aids the fans’ ability to view the driver and maintains an open-cockpit feel.
Of course, perhaps the images we have happen to be favourable angles. But it still seems much improved over the massive glare from Ferrari’s shield:
In some of the shots from Dixon’s night test, the screen practically fades into the background, at least for me:
Aesthetically, I can’t say I’m bothered at all by this.
9th February 2018, 7:19
My first thought looking at the front shot of Scott Dixon above. It seems to be clear, no distortion and no flares. Looks good and probably that it flexes enough to deflect a tire without breaking.
Would be nice to have Scott’s opinion on this one.
9th February 2018, 14:55
I think it has a lot of distortion for objects close to the shield. Look at the letters on the bottle on the right hand side.
Can’t judge though unless i sit on the driver’s seat!
9th February 2018, 21:01
They worked with PPG who is the most high tech glass company in earth. His is the company who builds all the fighter jet canopy’s. They also make this an anti glare glass. F1 never wanted the screen to work or they would have reached out to PPG. Also this glass is made and shaped to have zero distortion
9th February 2018, 21:12
PPG? I was thinking Plexicorp.
9th February 2018, 12:40
I’m not a fan of any of these cockpit protections, but this is by far and away the best one yet, aesthetically. It blends in well
9th February 2018, 12:41
This was supposed to be its own comment, I don’t know what happened
9th February 2018, 2:33
The wheels in IndyCar have been tethered since 1999 and the likelihood of a wheel coming off is slim to none.
9th February 2018, 6:26
On the contrary, I think F1 had already chosen the halo before Vettel was dizzy after a single lap.
There was no comparison, no testing of any other solutions, on track at least.
And here we are a few months later with something that looks like that! Stunning.
If it does the job, the FIA look very silly.
9th February 2018, 22:20
Flexing is good. Flexing is absorbing energy, and reducing the eventual impact force on the driver.
Rigid systems, as a rule, tend to break.
9th February 2018, 0:44
Motorsport has an article up in which driver Scott Dixon gives his initial impressions.
The primary issue he notes is cooling but I think that is something that will be solved by putting some vents in the mounting for the next version.
The big positive he says is that it is a lot quieter driving the car.
For optical distortion he says it is “a little bit different” but he also want to run with it some more and test it out on different tracks.
9th February 2018, 1:12
Ricciardo mentioned the quietness after the installation lap he did in the RBR test too.
9th February 2018, 13:22
Here’s a photo from the article. Amazingly little distortion.
9th February 2018, 0:45
i ask for 1 thing in the right direction to the FIA only 1
9th February 2018, 2:34
Can’t say that I like it 😢
From the stands its impossible to see the helmet and the reflection can be blinding at times, Driver views is one thing but the sunglare from the stands is something they need to rake into account else fans won’t actually be able to look at the cars.
9th February 2018, 9:36
Agree, it’s ugly.
It’s like a cheap toy when still in the plastic packaging.
Even the halo looks better than this
Keith Collantine (@keithcollantine)
9th February 2018, 9:44
Are you at the test?
9th February 2018, 2:36
It is super clear! Looks great!
9th February 2018, 22:21
Leaving the pits, yeah… but I gotta wonder what it’s going to look like after 190 laps at Indy.
“We’re gonna need a bigger tear-off!”
9th February 2018, 2:39
I wonder what sort of tests it has to undergo and what forces it needs to protect against versus the halo? (One and a half London double decker bus’ ?)
It certainly looks better.
By the way, testing is live streamed! Come on F1 – why can’t your testing be live Streamed?
9th February 2018, 2:57
It’s design mission is to deflect the most common threat, impact from carbon fiber and other flying parts. The wheels have been tethered since ’99 and the front nose assembly is tethered with Zylon. Low probability of large parts hitting the driver and no need to support the weight of a bus.
9th February 2018, 21:15
Was it not the case that Justin Wilson was killed by being struck on the head by the nose assembly back in 2015? The nose assembly might be tethered, but there have still been cases where the nose has detached from the chassis during a crash.
9th February 2018, 22:23
It’s still a freak accident. That thick, depending on the material, it could probably reduce the overall force of that nose cone by 60% or more.
It will be far more effective against small projectiles like the spring that hit Massa. If I were a racer, I think I’d prefer the screen to the halo.
10th February 2018, 1:20
The nose cones are tethered with Zylon (since Justin’s accident) like the wheels (since ’99). A large piece flying like that is very low probability now. The screen is designed to protect the most common threat, smaller flying parts. Even so, the screen could take a tremendous impact and survive.
9th February 2018, 3:20
Its intially better than last seasons Halo and we are yet to see how F1 tweeks the Halo in 2018 as Formula E has already shown there tweek
9th February 2018, 3:42
I assume they’ll test it in rain, and when it has dirt or oil on it. If they use tear-offs I wonder if a few layers of those on the screen will affect the visibility. Will be interesting to hear about how it feels/performs at 220mph in traffic in terms of aero effect. With Dixon saying it will take some getting used to visually and is something all the drivers will just have to try for themselves, I am a bit skeptical that they can get it tested in various real world conditions, and have all the drivers get used to it under all those conditions, and be using it this season, all in a very short time. That said at least they have southern US weather so they can be testing now and until the season starts.
9th February 2018, 3:47
Introduction at the start of the season was ruled out a while ago. Depending on how this test went, the choice is to introduce it at the end of the 2018 season or for the 2019 season.
9th February 2018, 4:12
Ah yes, I see also in the article above that it could be introduced sometime this season. Thanks. That makes more sense than what I thought I had read.
Keith Collantine (@keithcollantine)
9th February 2018, 9:46
One possibility is they’re considering this for superspeedways only, where the speeds are consistently much higher and the need for this arguably much greater, and they don’t run in the rain anyway. They’ll still need to give the screens a scrub during pit stops though I reckon.
9th February 2018, 13:06
@keithcollantine Ah ok, thanks Keith. That makes sense. I’m still quite curious as to how the cars will feel at 200mph type speeds, including when they’re closely packed together at those speeds. I can’t see how the screen won’t change the feel quite a bit. I wonder if they’ll have to add farings somehow somewhere to channel or focus air, as the screen makes for quite an amount of surface area to be hit by said air at high speeds.
9th February 2018, 17:28
@keithcollantine It’ll be interesting to see if they adopt a tear off for pit stops, oleophobic or hydrophobic coatings for oil and water, or dare I say even a wiper such as those on LMP cars!
9th February 2018, 4:05
It is a much more elegant solution, I could possibly imagine the eventually they may add some sort of hoop around the top edge to help with rigidity, but just from the pictures it appears to have much less noticeable distortion than the effort Ferrari cobbles together and the FiA and Seb Vettle dismissed after 1 lap (like it was just a half-hearted attempt to convince the fans and paddock nay-sayers, that the halo was the only way forward)
9th February 2018, 4:30
I maintain that the situation is far different for F1 given that their cars are much more involved, sensitive, and dependent on aerodynamics than Indycars. I think Ferrari’s ‘cobbled together’ prototype (I disagree with that portrayal) was trying to ensure air could still get into the airbox, for example, which is something Indycar doesn’t have to worry about.
I suspect that many in F1, especially the many who don’t like the halo, would welcome something more like an aeroscreen just as fans seem to prefer that, so I don’t get why some around here think the aeroscreen hasn’t been given enough effort and that the halo has been jammed through on some alleged short notice or what have you. If an aeroscreen was more feasible than a halo, I don’t sense so much love for the halo that it would be happening if an aeroscreen was just as easy to employ. I think it is way more complicated for F1.
I suspect that F1 simply knows instinctively that in order to employ an aeroscreen that works in all conditions and does the job it is supposed to, will cost them hundreds of millions in research, redesign, and remanufacture of the cars to accommodate such a big surface area being planted in front of the drivers. It will totally change how air hits (or doesn’t) the air hole, and how it goes around the airbox and hits the rear wing. And as we know once the back is changed so will the front of the car need to be in order to accommodate the major aero changes from the aeroscreen back.
9th February 2018, 4:38
You have got to admit though it would be interesting to see how drastically F1 cars would change due to the chain reaction of changes that would come about because of something like this.
9th February 2018, 4:53
For sure. Perhaps a hint is in the 2021 concept pictures Brawn was handing out to the teams near the end of the season as to ideas of what F1 could look like for the next gen.
Sergio B. Perez (@sergio-perez)
9th February 2018, 4:59
OmarRoncal - Go Seb!!! (@)
9th February 2018, 5:43
If visibility is affected, why don’t they make it totally flat (but leaning, not truck-cabin flat)? Probably it would also be ugly but I’m sure better than the Halo.
9th February 2018, 6:07
Even leaning (straight up is just too funny to even imagine) I would think a flat screen would be problematic aerodynamically. Especially at 220mph. Especially when we know how much air can be deflected just with a little 1” lip of a windscreen meant to get air over the helmet on open wheel cars. Come to think of it, a straight up little lip, no?
9th February 2018, 9:00
It would not only be ugly, but much weaker. PHYSICS ALERt ;) On top of that you would need 3 of such flat pieces connected together to enclose the driver, wouldn’t you? That’s another vulnerability and possible obstruction to the driver’s view as well.

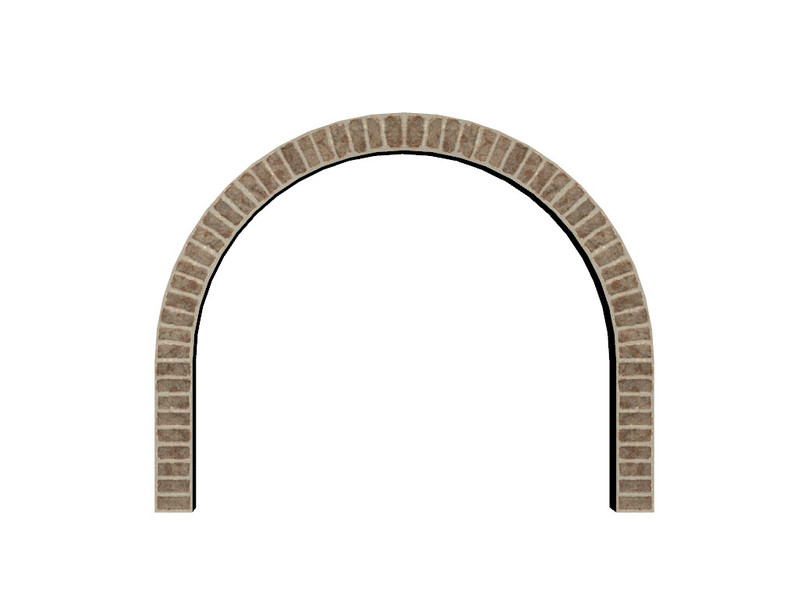

To explain the strength part – the difference is fundamental. Consider an arch made of bricks:
